代 號

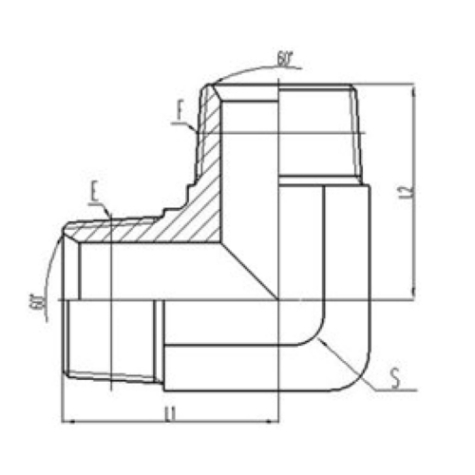

螺紋 THREAD

尺 寸 DIMENSIONS

PART NO.

E

F

L1

L2

S

1T9-04-02SP

R1/4"X19

R1/8"X28

25.5

23.5

14

1T9-04SP

R1/4"X19

R1/4"X19

25.5

25.5

14

1T9-06-04SP

R3/8"X19

R1/4"X19

28.5

26.5

16

1T9-06SP

R3/8"X19

R3/8"X19

28.5

28.5

16

1T9-08-04SP

R1/2"X14

R1/4"X19

36

30.5

22

1T9-08-06SP

R1/2"X14

R3/8"X19

36

32.5

22

1T9-08SP

R1/2"X14

R1/2"X14

36

36

22

1T9-12-08SP

R3/4"X14

R1/2"X14

43.5

39.5

27

1T9-12SP

R3/4"X14

R3/4"X14

43.5

43.5

27

1T9-16-12SP

R1"X11

R3/4"X14

50

47.5

33

1T9-16SP

R1"X11

R1"X11

50

50

33

1T9-20-16SP

R1.1/4"X11

R1"X11

59

56.5

41

1T9-20SP

R1.1/4"X11

R1.1/4"X11

59

59

41

1T9-24SP

R1.1/2"X11

R1.1/2"X11

62.5

62.5

48

1T9-32SP

R2" X11

R2" X11

75

68

63
